Over the Patient Delivery

With multiple configuration choices, the OTP delivery system offers flexibility and customization with minimal floor space required

Pelton & Crane’s over-the-patient delivery systems offer flexibility with multiple configuration choices. With minimal operatory floor space required, over-the-patient units easily integrate with the PMU.

Advanced Integration

Easily integrate KaVo electric systems (optional) with this dental delivery system. Incorporate key ancillary equipment: camera, scaler and curing light. USB port.

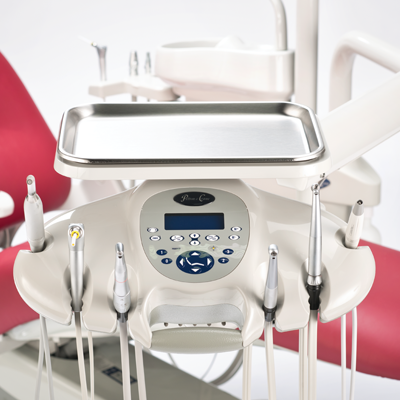

6 Position Doctor’s Instrumentation

6 positions accommodate 5 handpieces and 1 syringe. Handpiece positioning at 90 and 45 degrees.



Configuration Choices

The Spirit 3100 includes PMU, cuspidor and cuspidor-mounted assistant’s instrumentation. Spirit 3105 includes PMU and assistant’s instrumentation with telescoping arm. Assistant instrumentation comes standard with Quick Clean Syringe, autoclavable syringe, and saliva ejector. PMU supports addition of ancillary equipment (light, monitor).



Asepsis

Spirit 3100 Series delivery units are designed with fewer seams to simplify cleaning – asepsis made fast and efficient.

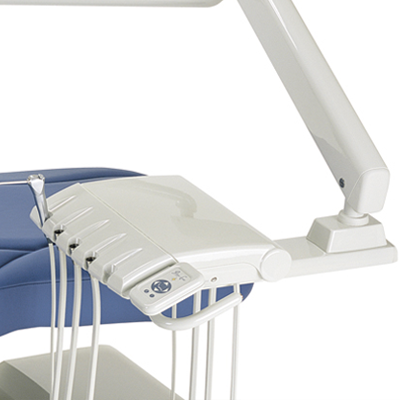

5 Position Doctor's Instrumentation

5 positions accommodate 4 handpieces and 1 syringe. Individual handpiece pressure adjustments.



Configuration Choices

The Spirit 2100 dental delivery system includes PMU, cuspidor and cuspidor-mounted assistant’s instrumentation. Spirit 2105 includes PMU and assistant’s instrumentation with telescoping arm. Assistant instrumentation comes standard with Quick Clean Syringe, HVE, and saliva ejector. PMU supports addition of ancillary equipment (light, monitor).



Control Head

Spirit 2100 delivery units have a die-cast metal control head to support long-term durability and addition of ancillary equipment (light, monitor).



Multi-Position Tray Holder

Die-cast tray holder with stainless steel tray.

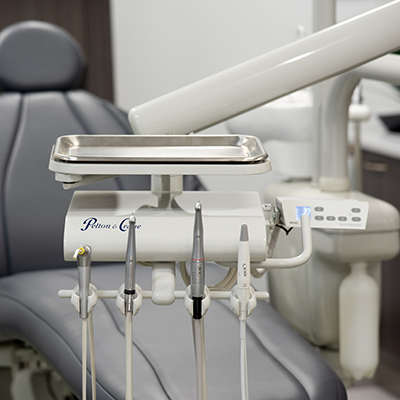

Doctor's Instrumentation

4 positions accommodate 3 handpieces and 1 syringe. Optional 5th position holder available.



Configuration Choices

The Spirit 1505 dental delivery system includes PMU, cuspidor and cuspidor-mounted assistant’s instrumentation. Spirit 1510 includes PMU and assistant’s instrumentation with telescoping arm. Assistant instrumentation comes standard with Quick Clean syringe, autoclavable HVE, and saliva ejector. PMU supports addition of ancillary equipment (light, monitor).



Control Head

Durable die-cast metal control head. Equipment utility center with asepsis housing.



The Alliance 1250 series dental delivery system includes Quick Clean Syringe and Straight asepsis tubing for 3 handpieces is standard. Convenient brake release for flex arm Individual non-retracting water coolant adjustments, handpiece tubing purge system, self-contained water system with city water/bottled water selector, Post-mount utility center with solids collector, Contoured junction box, Assistant’s instrumentation included on a telescoping arm, HVE, SE, and QC syringe come as standard assistant’s package and optional cuspidor available.



Documentation

Displaying 1 - 10 of 17
Spirit 2000 Series Delivery Unit Use and Care Manual
Document Type: Instructions
Language: English
Release date:
Wednesday, 31 January, 2018 - 06:01
File size:
4.13 mb
Spirit 2000 Series Delivery Unit Installation Instructions
Document Type: Instructions
Language: English
Release date:
Wednesday, 31 January, 2018 - 06:01
File size:
6.72 mb
Spirit 3000 Series Delivery Unit Installation Manual
Document Type: Instructions
Language: English
Release date:
Wednesday, 31 January, 2018 - 06:01
File size:
3.54 mb
Spirit 3000 Series Delivery Unit Technical Specifications Manual
Document Type: Instructions
Language: English
Release date:
Wednesday, 31 January, 2018 - 06:01
File size:
0.78 mb
Spirit 2000 Series Delivery Unit Technical Specifications Manual
Document Type: Instructions
Language: English
Release date:
Wednesday, 31 January, 2018 - 06:01
File size:
0.43 mb
Spirit 1500 Series Delivery Unit Technical Specifications Manual
Document Type: Instructions
Language: English
Release date:
Wednesday, 31 January, 2018 - 06:01
File size:
0.32 mb
Spirit 3000 Series Delivery Unit Use and Care Manual
Document Type: Instructions
Language: English
Release date:
Wednesday, 31 January, 2018 - 06:01
File size:
1.97 mb
Spirit 2000 Series Dental Units Parts List
Document Type: Instructions
Language: English
Release date:
Thursday, 2 March, 2023 - 20:03
File size:
14.68 mb
Spirit Chair Mounted Assistant's Parts List and Service Manual
Document Type: Instructions
Language: English
Release date:
Thursday, 2 March, 2023 - 20:03
File size:
1.91 mb
Spirit 1500 Cart Delivery Installation Instructions
Document Type: Instructions for Use (IFU)
Language: English
Release date:
Sunday, 9 June, 2019 - 06:06
File size:
1.12 mb
