Ellipse Delivery

Our most popular delivery system is the Pelton Ellipse delivery unit, facilitating easy left/right conversion in a balanced, ergonomic design

Pelton & Crane’s ellipse mount delivery systems facilitate easy left/right conversion in a balanced, ergonomic design. Easily integrate KaVo handpieces and additional ancillary equipment as needed.

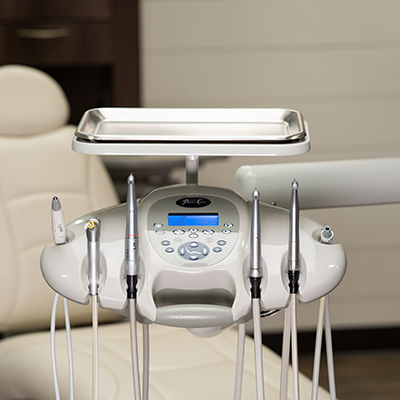

Flexible Positioning

Ellipse mount facilitates easy left/right conversion. Soft, squeeze-release air brake allows ergonomic positioning and control of this dental delivery system.

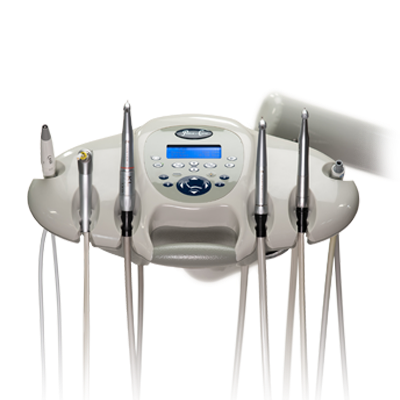

Advanced Integration

Easily integrate KaVo TLC electric handpieces (optional). Incorporate key ancillary equipment: camera, scaler and curing light. Also features a USB port for plug and play.



6 Position Doctor's Instrumentation

6 positions accommodate 5 handpieces and 1 syringe. Handpiece positioning at 90 and 45 degrees.





Flexible Positioning

Ellipse mount facilitates easy left/right conversion. Button activated arm brake system located on control head handle for easy accessibility.

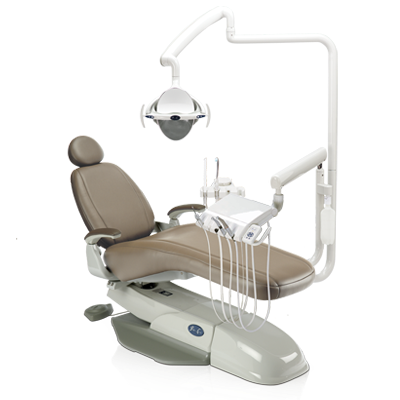

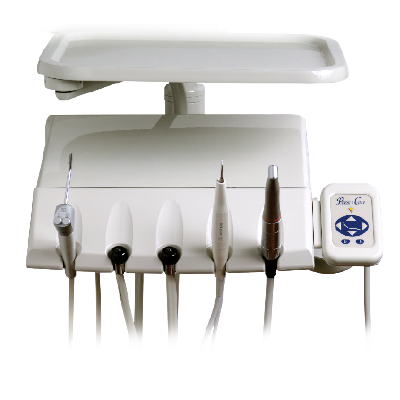

Control Head

The Spirit 2120 delivery unit has a die-cast metal control head to support long-term durability.



5 Position Doctor's Instrumentation

5 positions accommodate 4 handpieces and 1 syringe. Individual handpiece pressure adjustments.





Flexible Positioning

Ellipse mount facilitates easy left/right conversion. Easily add an ellipse assistant’s instrumentation and cuspidor if desired for total customization.

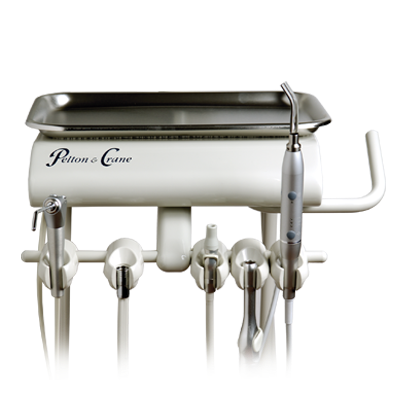

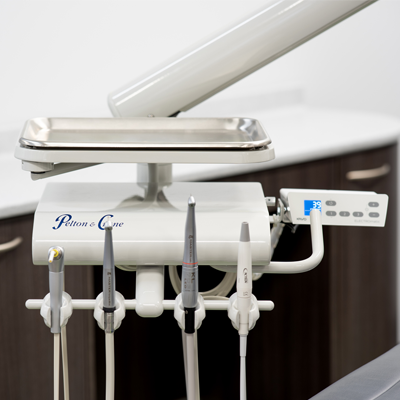

Control Head

The Spirit 1585 dental delivery system has a die-cast metal control head to support long-term durability. Equipment utility center with asepsis housing.



Water System

Self-contained water system with city/bottled water selector; features individual non-retracting water coolant adjustments.



Doctor's Instrumentation

4 positions accommodate 3 handpieces and 1 syringe. Optional 5th position holder available.

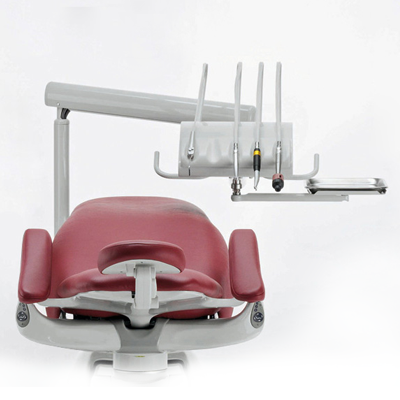

Continental Style

Balanced, ergonomic dental delivery system. Easy left/right conversion. Add ellipse assistant’s instrumentation and cuspidor if desired.



Control Head

Durable die-cast metal control head. Equipment utility center with asepsis housing.



Water System

Self-contained water system with city/bottled water selector. Individual non-retracting water coolant adjustments.



Doctor’s Instrumentation

4 positions accommodate 3 handpieces and 1 syringe. Optional 5th position holder available. Stainless steel tray with no-skid pad.



Flexible Positioning

Features rotating system design for quick and easy conversion from left-to-right hand position, quick clean syringe, and 3 handpiece asepsis tubing.



Water System

Self-contained water system with city/bottled water selector. Individual non-retracting water coolant adjustments and handpiece flush system.



Easy Integration

Pre-wired with 8 conductor cables for accessory addition, and floor utility center with regulators and shut-off valves.
